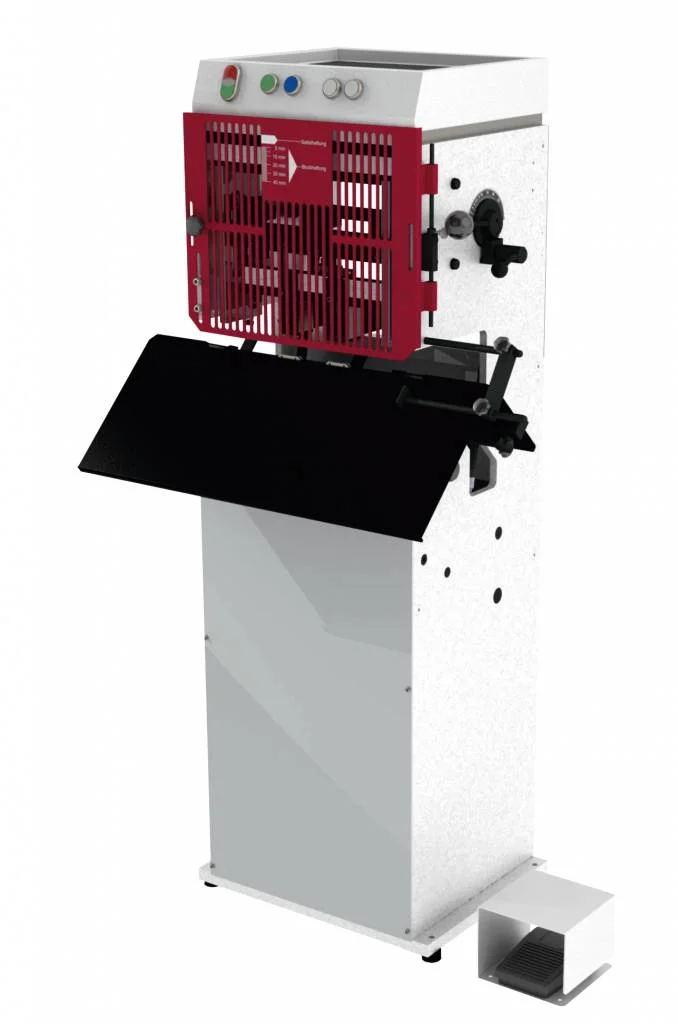

Stago USM-series

Description

The Stago USM series staplers are clearly the flagships of staplers. They feature the highest variability and an enormous stapling capacity up to 250 sheets. For the STAGO – Stapling machines functionality, precision and a high ease of use are always in the foreground. Robust mechanics, durability of materials and modern urges are the warranties for a perfectly long-running function. STAGO- Stapling machines are equipped with electrically secured protection with a visual display (only automatic machines) and a depot display. The USM series models are clearly the flagships of staplers. They feature the highest variability and an enormous stapling capacity of up to 250 sheets (80g plain paper). Depending on the model, stapling with up to 6 stapling heads is possible. The spacing can be freely selected within the range of 40-360 mm. STAGO-typical robust design for continuous daily use. An active clencher matrix and an infinitely variable stapling thickness adjustment guarantee a perfect stapling result. Due to very short conversion times between different usage scenarios (flat-, saddle stapler, flat-, loop staple, different dimensions, etc.), the USM series is economical on short runs. For larger brochure editions we recommend the optional automation unit BMK1800.

Stago USM-series
	USM 140	USM 240	USM 360
Stapling heads	1-2	1-4	1-6
Distance between heads	40-140 mm	40-240 mm	40-360 mm
Flat stapling	2-250 sheets (25mm, 80g paper)	2-250 sheets (25mm, 80g paper)	2-250 sheets (25mm, 80g paper)
Saddle stapling	yes	yes	yes
Staples (sizes)	K24/6-22, K50/20-27, KRi24/6-8	K24/6-22, K50/20-27, KRi24/6-8	K24/6-22, K50/20-27, KRi24/6-8
Automation	no	BMK 1800*	no
Working height	880 mm	880 mm	880 mm
Machine dimensions	1500 / 620 / 800 mm	1500 / 620 / 800 mm	1500 / 740 / 800 mm
Weight	83 kg	105 kg	140 kg
Power supply	230V / 50Hz	230V / 50Hz	230V / 50Hz
