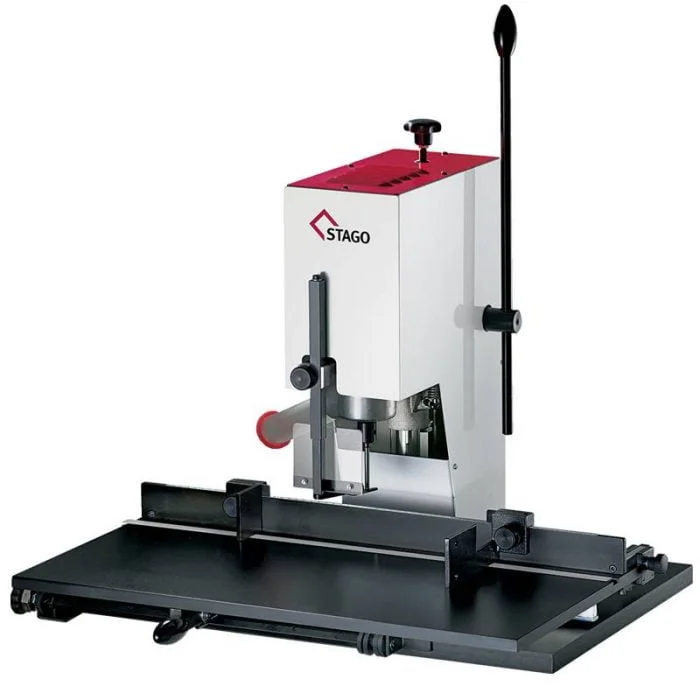

Stago 1015 Paperdrilling machine

Description

The PB 1015 series machines are suitable for punching larger paper stacks in offices, law firms, schools, government agencies, copy shops, and small print shops. The ergonomic, simple, and robust design enables them to have a wide range of applications. Stacks of paper of up to 60 mm can be punched in a user-friendly way and without much effort. Three different table designs enable economical use for many different applications.

The sliding table with programme shaft (SP) allows it to define up to 6 different hole spacing. Precise dual, double, US and also customised perforations are therefore not a problem. The chip removal is performed automatically into a collection bag. However, it is not only paper that can be punched, but cardboard, textiles, leather, plastics, etc. can also be machined by a wide range of drill bits with hole diameters of 2-15 mm. * infinitely variable stops for paper sizes up to DIN A3 * various table versions * processing of paper, etc. cardboard, textiles, leather, plastics * drilling depth up to 60 mm * designed for constant use * ergonomically, robust construction

No. of drilling spindles	1
Drilling diameter	2 – 15 mm
Drilling depth max.	60 mm
Drilling speeds	1200* / 2400 U/min
Table versions	Fixed (F), sliding with programme shaft (S)
Throat depth	86 mm
Table size	650 / 450 mm (F), 650 / 380 mm (S)
Materials	paper, cardboard, textiles, leather, plastics
Machine Dimensions	580 (F), 700 (S) / 650 / 450 mm
Weight	32 kg (F), 42 kg (S)
Power supply	230V / 50Hz, 115V / 60Hz*
Options	Base frame

* optional
