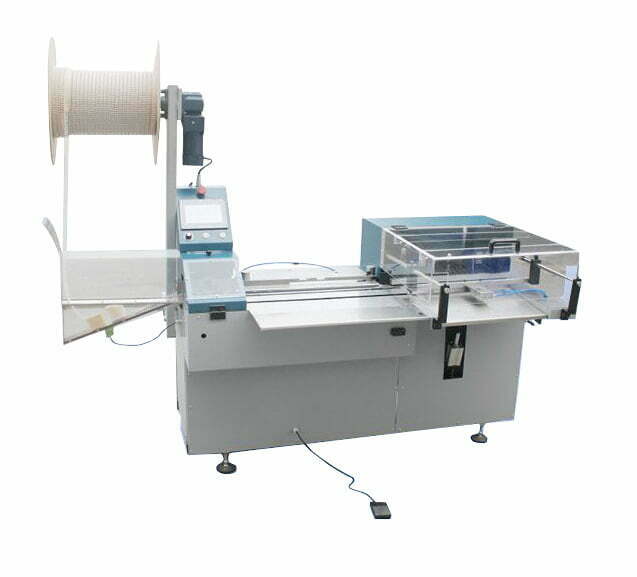

Albyco CB-420 semi automatic bindingmachine

Price on request

Request Price
Albyco CB-420 semi automatic binding machine is widely used for binding double loop wire notebooks, desk calendar and wall calendar etc. More information / Download PDF
Do you have any questions about this product? Contact us now: +31 162 486 286
SKU: ALBCB420
Categories: ,

Description

Albyco CB-420 semi automatic binding machine is widely used for binding double loop wire notebooks, desk calendar and wall calendar etc. It can bind from size 1/4” to 1+1/4” without changing the binding tools. It will cut, convey and close the wire then drop on a conveyor. It increases the production efficiency and lowers the cost remarkably.

1、No need to change the binding tools as the binding height is adjustable for all the sizes from 1/4” to 1+1/4” 2、It can be used to bind books or calendars with overhanging cover 3、Option for calendar hanger feeder system and conveyor 4、Controlled by computer, easy to setup
Technical parameters
Max binding size 420*420mm
Min binding size 70*100mm
Wire binding capacity 1/4”-1+1/4”
Binding thickness capacity 1.5mm-27mm
Binding speed 600-1100books/hour
Power AC220V/1PH/50(60)HZ
Machine weight 255KG
Max hanger length 380mm
Compressed air pressure 6-8bar
Dimension 2220mm*1000mm*1800mm
