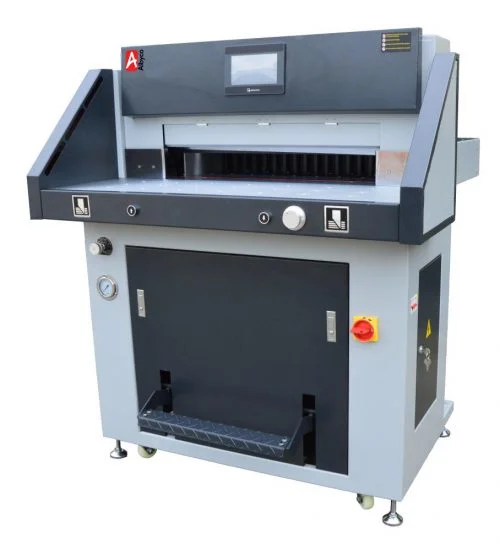

Albyco 530 hydraulic guillotine

11.000,00

13.310,00 incl. VAT

Albyco 530 hydraulic guillotine More information / Download PDF
Do you have any questions about this product? Contact us now: +31 162 486 286
SKU: ALB530
Categories: ,

Description

The Albyco 530 hydraulic guillotine offers unique features:
• High-quality infrared safety lightbar, for safe and unobstructed access to the blade
• Air table for easy movement of paperpiles
• Maximum cutting length of 52 cm up to SRA3+
• Equipped with 100 programs, up to 32 steps
• The fully hydraulic operation is controlled by an OMRON PLC, ensuring high accuracy and stable performance. The rear paper table is slotless due to the double-guided saddle design. High-quality infrared safety light line, for safe, unobstructed access to the blade.
With the maximum cutting length of 52 cm it is easy to cut up to SRA3 +. The Albyco 530 hydraulic stack cutting machine is equipped with a 100-program digital programming system with up to 32 steps per program. The PLC ensures a cutting accuracy of +/- 0.1 mm. User-friendly, intuitive touchscreen with clear information display.
 Albyco 530
Max. cuttinglength 520 mm Swivel blade holder
Max. cuttingheight  80 mm Accuracy display: 0,1 mm
Max. cuttingdepth 52 cm Paper-eject-function
Min. cuttingdepth 30 mm Easily programmable
Hydraulic cutting, hydraulic pressing Cm and inches
Omron PLC control unit Dimensions: 117 x 141 x 138 cm
Touch screen display Powersupply: 230 V/3,8 Kw
Memories: 100 programs/each up to 32 steps Weight: 400 kg
